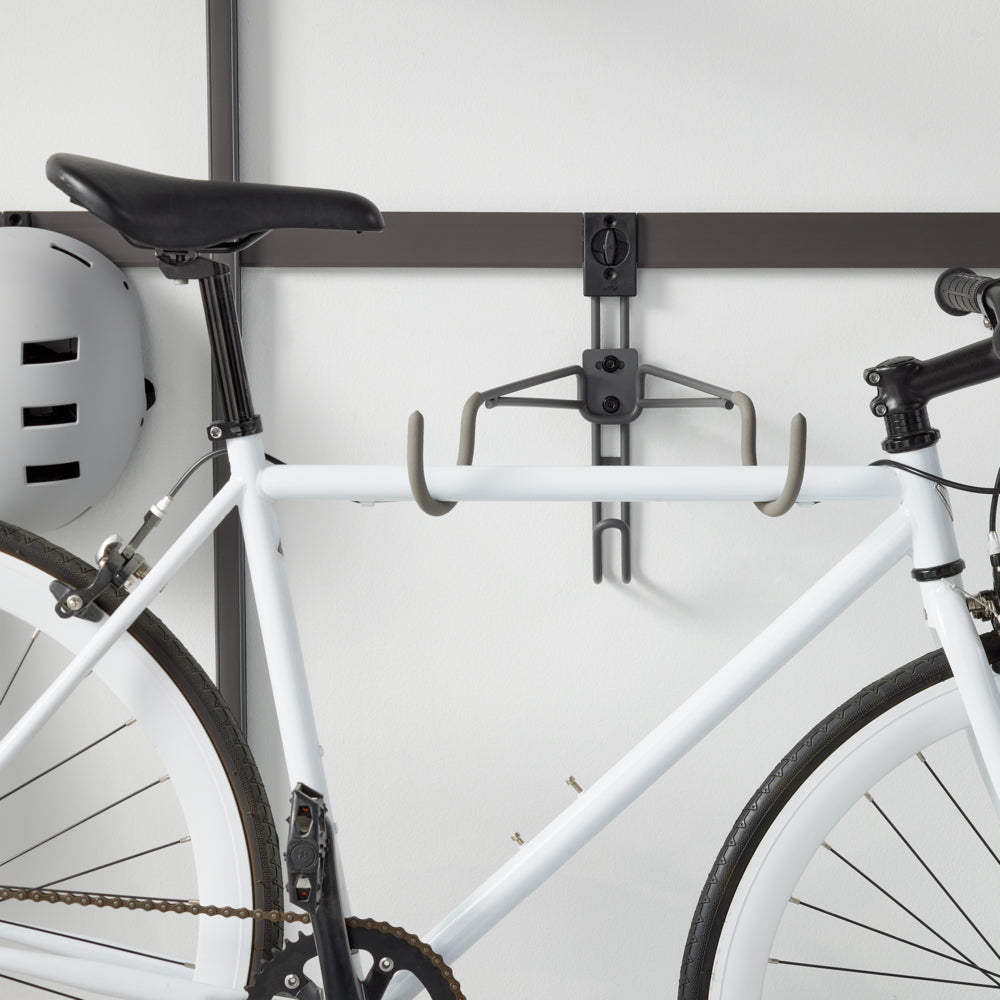

Store your bikes on the wall with the Garage+ bike hooks. Designed for horizontal frame storage, this hook features a cushioned non-slip coating, ensuring both safety and protection. Helmets are easyly stored on the integrated hook. Easily install it on storage or top tracks, or directly on the wall. Organize your space while keeping your bikes easily accessible.
- Cushioned non-slip coating protects bikes while hanging.
- Hooks into Garage+ storage or top tracks, or screws directly into the wall.
- Organize your space while keeping bikes readily available
Width (mm)312
Depth (mm)344
Height318
Weight Recommendation30 kg
Technical Details
Hook for hanging up bikes in a horizontal position. To be assembled in a storage track or top track with lockable attachment.
The hook can also be fastened directly to the wall with screws (not included).
Locking feature to lock the hook in place on the track.
Angle of hook can be adjusted.
Integrated hook for e.g helmets and accessories
Wall plate for attachment to wall for extra stability
If the hook is to be fastened to the wall, we recommend using a screw from Elfa assortment adapted to the wall material.
Hook holder made in PA6 (nylon and glass fiber). Hook in 8 mm steel wire. Rubber part in PVC.
Not foldable
Planning Tips:
When planning in Elfa Planner, the design tool will help you determine potential placements of the hook.
The size of the bike you want to store in the hook determines the placement (and how adjacent products can be placed). Make sure that the hook is placed high enough in the system to make room for the bike length.
Also, ensure that the bike isn't heavier than the 25 kilo weight recommendation.
We recommend a maximum of 3 ""big hooks"" (Straight hook, wide L-hook, J-hook, vertical/horizontal bike hook, golf bag holder, square mesh storage bag, track mesh basket) on a W: 60 storage track.
Note: If you aim to mount the hook directly to the wall, make sure to identify where there is an available stud to fasten the hook in (and adjust your planning if necessary).
Assembly Instructions
When mounting on a storage track or top track:
Step 1: Turn the lock counter-clockwise to open the lock.
Step 2: Position the top of the hook over the top edge of the storage track/top track and pull it down into place.
Step 3: Turn the lock clockwise to close.
When fastening directly to the wall:
Step 1: Identify the position on the wall where you want to mount. If mounting on a plaster wall, identify where there is a stud in the wall.
Step 2: Position in place and, using adequate screws for your wall type, fasten through both screw holes.
Step 3: Turn the lock clockwise to close.
